maximum flexibility and highest resilience

Due to its excellent mechanical features EPDM rubber hose material is ideally suited for the connection of:

Caution >> For plug connections different operating pressures and temperatures apply!

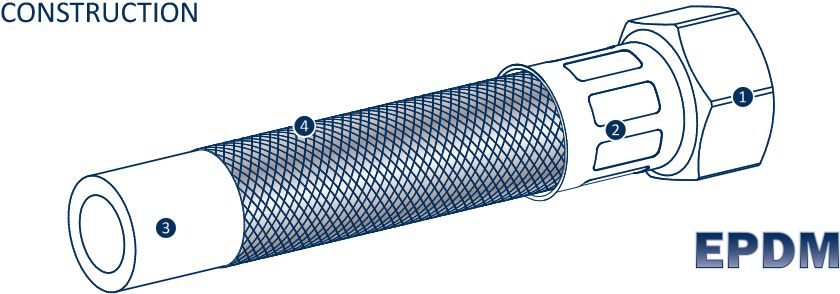

1. standard connection fittings brass blank or custom-made
2. ferrule made of stainless steel AISI resp. made of aluminium as of DN 15
3. flexible and mechanically resilient ethylene-propylene-dien-caotchouc (EPDM)
4. high-quality braiding made of stainless steel AISI upon request also other braiding materials possible

The EPDM rubber hose material stands out for its high mechanical resilience, e.g. at tensile stress or loads of temperature changes. It is most flexible and shows a high thermal resistance.

The use of this rubber material is very versatile.

It can be used for numerous applications in the field of industrial water as well as for diffusion permeable connections in heating and apparatus engineering. Further appliances develop with modern technologies as for example the use of rain water and heat pumps.

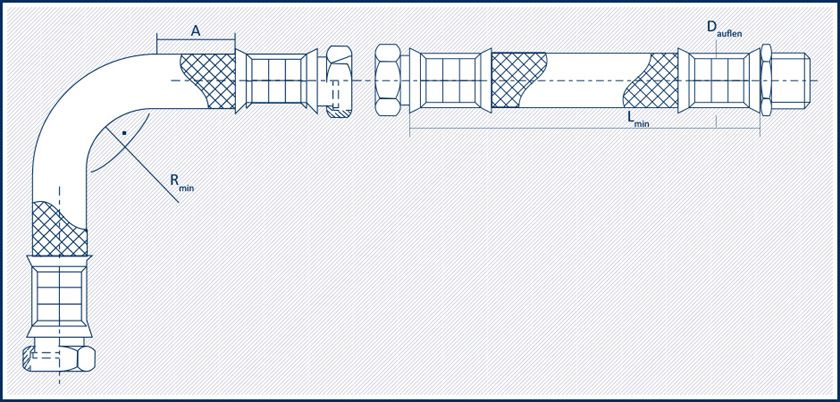

measurements in mm. All quotations (excluding diameter) are minimum measurements and shall be exceeded when possible.

The guarantee shall apply only if the directions mentioned above are observed exactly as well as the installation has been carried out professionally and in accordance with current regulations. Corrosive, electro-chemical and bacteriological strain shall be avoided by appropriate protection measures. Errors and changes for technical progress excepted. Publication of current issue renders previous editions invalid.

Explanation: >> Standard; on request

	DN	06	08	10	12	15	20	25	32	40	50
ÜM 1/4" fd
ÜM 3/8" fd
ÜM 1/2" fd
ÜM 3/4" fd
ÜM 3/4" kd
ÜM 1" fd
ÜM 1 1/4" fd
ÜM 1 1/2" fd
ÜM 2" fd
ÜMB 3/8" fd
ÜMB 1/2" fd
ÜMB 3/4" fd
ÜMB 1" fd
ÜMB 1 1/4" fd
ÜMB 1 1/2" fd
AG 1/4" fd
AG 3/8" fd
AG 1/2" fd
AG 1/2" kd
AG 3/4" fd
AG 3/4" kd
AG 1" fd
AG 1" kd
AG 1 1/4" fd
AG 1 1/2" fd
AG 2" fd
QV 8
QV 10
QV 12
KV 15
RS 8
RS 10
RS 12
RS 15
RS 22
M 8x1 17 mm
M 10x1 17 mm
M 8x1 45 mm
M 10x1 45 mm
JG 8
JG 10
JG 12
JG 15
RS 10 JG
RS 12 JG
RS 12 JG
Winkel JG 10
Winkel JG 12
Winkel JG 52

explanation of abbreviations >>

ÜM = union nut | ÜMB = bend with union nut | AG = male thread | QV = compression fitting
KV = clamping ring fitting | fd = flat sealing | kd = conically sealing | RS = pipe stub
M = fine thread with O-Ring | JG = John Guest push fitting
Winkel JG = John Guest push fitting in angled form

Further sizes and special fittings are available after technical clearance.

JG* / Winkel JG* with guiding cap upon request
