OXYban
OXYGEN IMPERMEABLE & HIGHLY FLEXIBLE
The hose material OXYban is free of any halogenes, flexibilisers and heavy metals. It has been examined for its oxygen diffusion behaviour acc. to DIN 4726. In order to be classified as oxygen impermeable acc. to DIN a maximum of 0,32 mg of oxygen per m² and per day is licit to diffuse into the inside of the hose. Oxyban undercuts this limit with an amount of only 0,11 mg of oxygen per m² and per day (≙ 0,013 g/m³d at a pipe diameter DN 8 and a testing temperature of approx. 40 °C).
The exclusion of oxygen stops corrosion as well as the growth of bacteria and consequently prevents the silting in heating and air-conditioning systems.
Additionally, the OXYban hose material shows a vacuum resistance up to 0,1 mbar even with the smallest bending radiuses and temperatures of up to + 80 °C.
CERTIFICATIONS
Applicable certifications pertaining to various dimensions will be gathered from the tables listed below.
EASY TO INSTALL & DURABLE FOR AIR-CONDITIONING TECHNOLOGY
Due to its oxygen impermeability our new OXYban hose is ideally suited for the connection of:
| within a temperature range of up to: |
|
|
|
|
|
|
+ 80 ° C |
| maximum operating pressure: |
|
|
|
|
|
|
|
| DN |
|
|
10 |
12 |
|
|
15 bar |
| DN |
|
|
|
15 |
|
|
12 bar |
| DN |
|
20 |
25 |
32 |
|
|
10 bar |
| DN |
|
|
40 |
50 |
|
|
6 bar |
Caution » For plug connections different operating pressures and temperatures apply!

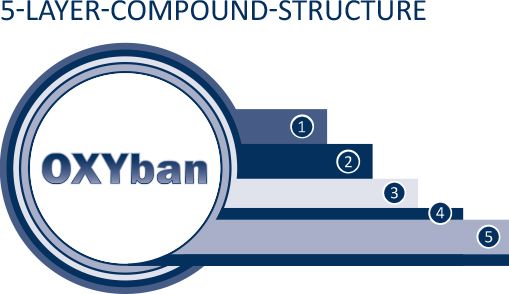

- high-quality braiding made of stainless steel AISI with marking wire
- PE-protection layer protects the oxygen barrier from Damage
- oxygen diffusion barrier EVOH
- adhesive layer
- Pure polyethylene approved as pipe, flexible as hose
|
DN |
10 |
12 |
15 |
20 |
25 |
32 |
40 |
50* |
| Innendurchmesser in mm |
|
9,5 |
11,1 |
15 |
19 |
26 |
29 |
36 |
47 |
| Außendurchmesser in mm |
|
13,5 |
16,5 |
19,5 |
25 |
32 |
34 |
43 |
54 |
| Max. Betriebsdruck in bar |
|
15 |
15 |
12 |
10 |
10 |
10 |
6 |
6 |
| max. operating temperature |
|
+ 80 °C |
| braiding |
|
stainless steel wire AISI |
| ferrules |
|
stainless steel AISI; as of DN 50 aluminium |
| fittings |
|
standard connection fittings nickel-plated brass / blank or custom-made |
* on request

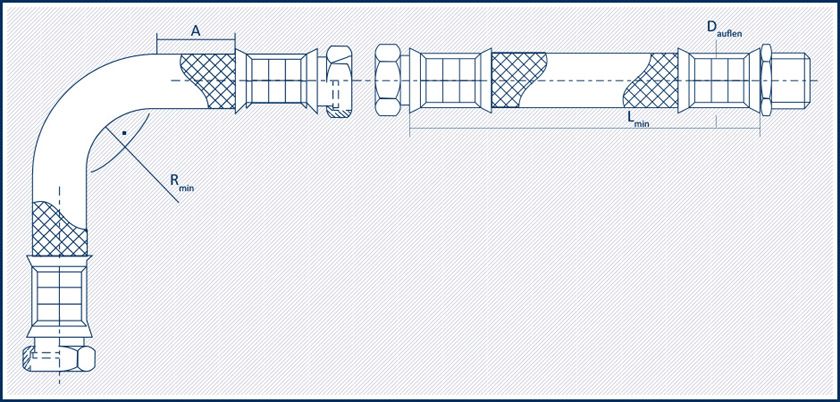

| DN |
A/R min |
L min |
L min
α = 90 ° |
L min
α = 180 ° |
L min
α = 360 ° |
10
|
30 |
70 |
160 |
215 |
330 |
| 12 |
40 |
80 |
200 |
270 |
420 |
15
|
50 |
90 |
250 |
350 |
545 |
| 20 |
70 |
100 |
335 |
465 |
725 |
| 25 |
100 |
125 |
455 |
635 |
1000 |
| 32 |
130 |
140 |
575 |
805 |
1265 |
| 40 |
160 |
170 |
710 |
1000 |
1575 |
| 50 |
180 |
210 |
790 |
1120 |
1775 |
Measurements in mm. All quotations (excluding diameter) are minimum measurements and shall be exceeded when possible.
The guarantee shall apply only if the directions mentioned above are observed exactly as well as the installation has been carried out professionally and in accordance with current regulations. Corrosive, electro-chemical and bacteriological strain shall be avoided by appropriate protection measures. Errors and changes for technical progress excepted. Publication of current issue renders previous editions invalid.

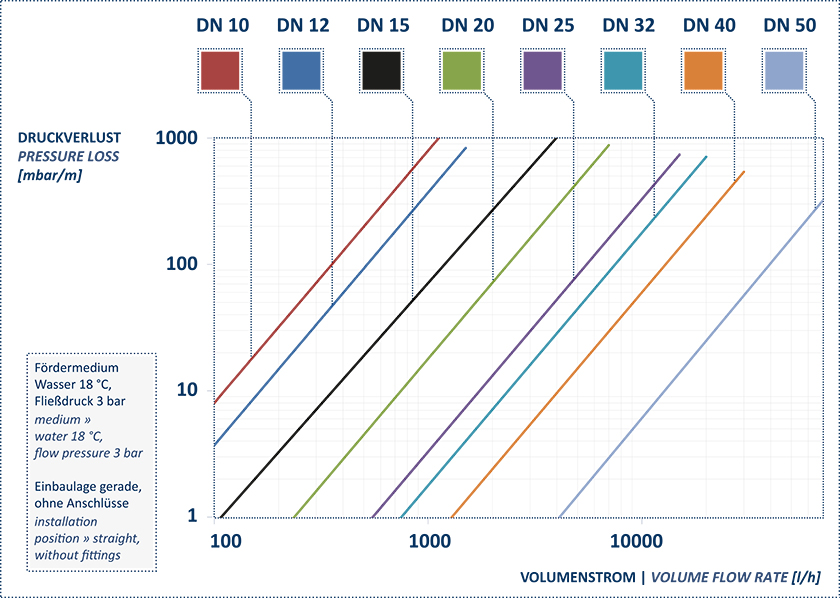

| name |
dimension |
flow rate
in l / s |
sound pressure level Lp 1)
in dB (A) |
sound pressure level Lw 2)
in dB(A) |
| OXYban |
DN 12 |
0,12
0,2 |
13,3
20,1 |
11,3 ~ 11
18,1 ~ 18 |
1) measured value in a 0,1 m distance; corrected spectrally for background noise level
2) calculated sound power level with Lw = Lp - 10 log (distance: here 0,1 m) - 8 dB - (approximately determined for ideal linear sound source; without floor reflections).
Climatic conditions during measurement: air temperature 20 °C / air pressure 988 hPa / air moisture 42 %.
medium: water 18 °C, flow pressure 3 bar
installation position: straight, without fittings
