LC-Flex
Flexible hoses for drinking water
The hose material Lc-flex is free of any soluble components such as halogenes, flexibilisers, caoutchouc, vulcanisation chemicals and heavy metals. The certification after the German Technical and Scientific Association for Gas and Water (DVGW) with the tests W 543, W 270 und KTW A shows clearly the excellent microbiological cleanness and mechanical resilience. Additionally, the inner hose material offers a high resistance against electrical corrosion and a vacuum resistance up to 0,1 mbar even with the smallest bending radiuses and temperatures of up to + 90 °C.
CERTIFICATIONSAPPLICATION FIELDMAXIMUM PURITY FOR HIGHEST DRINKING WATER COMFORT
Due to its excellent hygienic features Lc-flex is ideally suited for the connection of:
| within a temperature range of up to: |
|
|
|
|
|
|
+ 90 ° C |
| maximum operating pressure: |
|
|
|
|
|
|
|
| DN |
6 |
8 |
10 |
12 |
|
|
15 bar |
| DN |
15 |
|
|
|
|
|
12 bar |
| DN |
20 |
25 |
30 |
|
|
|
10 bar |
| DN |
40 |
50 |
|
|
|
|
6 bar |

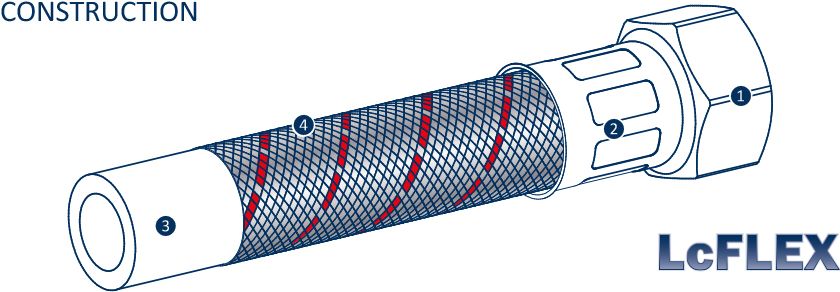

- standard connection fittings nickel-plated brass / blank resp. upon demand made of lead-free brass (only water-touching parts) or custom-made
- ferrule made of stainless steel AISI
- flexible and microbiologically clean polyethylene (PE) from DN 20 especially flexible as corrugated hose
- high-quality braiding made of stainless steel AISI up to DN 15 with red marking wire
upon request a PE protection coating above the braiding is possible
The hose material Lc-flex is free of any soluble components such as halogenes, flexibilisers, caoutchouc, vulcanisation chemicals and heavy metals. The certification after the German Technical and Scientific Association for Gas and Water (DVGW) with the tests W 543, W 270 und KTW A shows clearly the excellent microbiological cleanness and mechanical resilience. Additionally, the inner hose material offers a high resistance against electrical corrosion and a vacuum resistance up to 0,1 mbar even with the smallest bending radiuses and temperatures of up to + 80 °C.
|
DN |
6 1, 2 |
8 1,2 |
10 1,2 |
12 1,2 |
20 1,2 |
25 1 |
30 |
40* |
50 |
| Innendurchmesser in mm |
|
6,4 |
8,2 |
10 |
12,7 |
21 |
25,5 |
29 |
36 |
47,5 |
| Außendurchmesser in mm |
|
10 |
12 |
14,5 |
18 |
26 |
31,5 |
34,5 |
43 |
54,5 |
| Wandstärken in mm |
|
1,3 |
1,4 |
1,8 |
2,2 |
0,4 |
0,4 |
0,4 |
0,4 |
0,6 |
| Max. Betriebstemperatur |
|
+ 90 ° C |
| Max. Betriebsdruck in bar |
|
15 |
15 |
15 |
15 |
10 |
10 |
10 |
6 |
6 |
| braiding |
|
stainless steel wire AISI / upon customer request |
| ferrules |
|
stainless steel AISI; as of DN 15 aluminium |
| fittings |
|
standard connection fittings nickel-plated brass / blank or custom-made |
1 approved by DVGW - W 543, W 270, KTW A - Ab DN 20 als PE-Wellschlauch
2 approved by SVGW
WRAS approved material for all dimensions
*on request

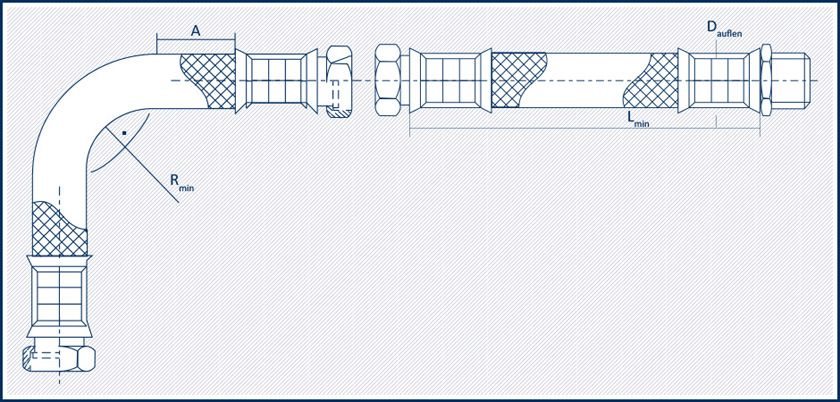

| DN |
A/R min |
L min |
L min
α = 90 ° |
L min
α = 180 ° |
L min
α = 360 ° |
| 6 |
50 |
100 |
225 |
310 |
485 |
| 8 |
55 |
100 |
250 |
345 |
540 |
| 10 |
65 |
100 |
285 |
400 |
630 |
| 12 |
95 |
100 |
405 |
565 |
895 |
| 15 |
125 |
125 |
520 |
730 |
1160 |
| 20 |
70 |
100 |
330 |
465 |
725 |
| 25 |
100 |
125 |
455 |
635 |
1000 |
| 30 |
130 |
140 |
580 |
815 |
1285 |
| 40 |
160 |
160 |
708 |
996 |
1575 |
| 50 |
200 |
210 |
790 |
1115 |
1760 |
Measurements in mm. All quotations (excluding diameter) are minimum measurements and shall be exceeded when possible.
The guarantee shall apply only if the directions mentioned above are observed exactly as well as the installation has been carried out professionally and in accordance with current regulations. Corrosive, electro-chemical and bacteriological strain shall be avoided by appropriate protection measures. Errors and changes for technical progress excepted. Publication of current issue renders previous editions invalid.
